Tools Used in Horizontal Directional Drilling (HDD)

Horizontal Directional Drilling is a trenchless technology enabling underground installation of pipelines, conduits, and cables with minimal surface disruption. Here's an overview of the essential tools and equipment involved:

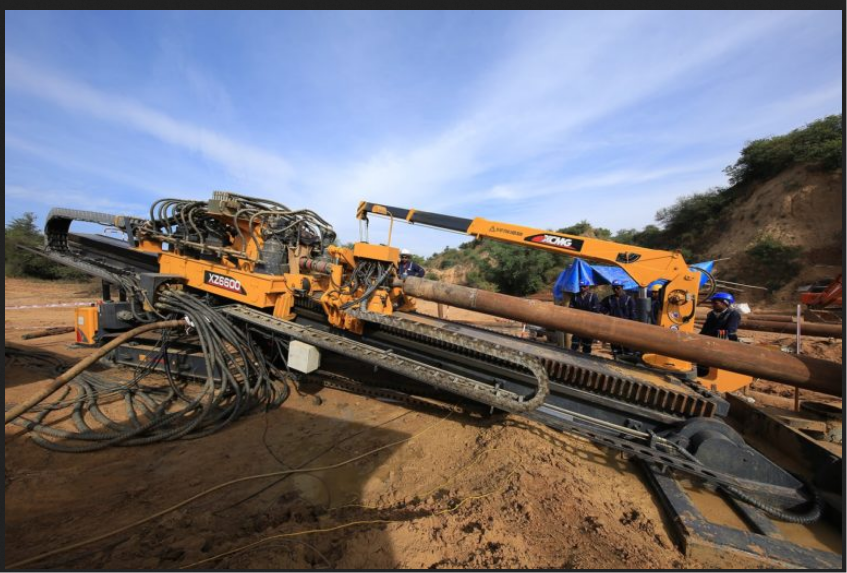

1. HDD Rigs (Drilling Machines)

• These crawler-based rigs (e.g., rubber or steel crawler systems) provide traction and stability models. combine walking systems, thrust/pullback capabilities, mud systems, and operator cabins for efficient drilling.goodeng.com

2. Mud (Drilling Fluid) System

• Integral to HDD rigs, the mud system includes a pump and jet nozzle for lubricating the drill bit, stabilizing the bore, and transporting cuttings.

3. Drill Rods

• High-strength, threaded rods transmit torque and axial force between the rig and the drill bit.

4. Downhole Tools (Bits, Reamers, Blades)

• Specialized cutting tools—such as Eagle Claw bits, Iron Fist bits, Steep Taper UltraBits, Red Diamond blades, Rock Saw blades, and more—are selected based on ground conditions (e.g., sand, gravel, clay, cobbles, shale, or caliche).

5. Pullback and Reaming Devices

• Reamers enlarge the pilot hole to the required diameter, while pullback devices allow pipe pullback without removing the drill head.

6. Adapters, Collars & Quick-Disconnect Systems

• These components enable efficient assembly and disassembly of tooling strings and compatibility across different tool systems.

7. Drive Chucks, Swivels, and Sub-Savers

• Drive chucks securely hold drill rods, while swivels prevent torsion-induced damage to fluid lines. Sub-savers protect sensitive components from wear.

8. Tracking & Steering Tools

• Magnetic wireline tools—relying on surface coils—provide accurate drill path tracking; gyro tools use gyroscopes and accelerometers and are useful where magnetic interference exists. Operators steer using inclination and azimuth readings to navigate underground.

9. Drilling Fluids & Accessories

• Components like rod wipers, mud mixers, and drilling compounds maintain bore stability and tool performance.

10. Supporting Equipment

• Ancillary equipment includes mud recycling systems, fluid mixing stations, and excavators for handling rods, especially in large-diameter or long-distance projects.

---

Lifcon: Leading HDD Service Provider in Saudi Arabia

When it comes to executing HDD projects in Saudi Arabia, Lifcon stands out as the premier provider. Their fleet of modern rigs, comprehensive downhole tooling, advanced steering systems, and fluid management setups enable them to deliver efficient, accurate, and environmentally responsible installations across diverse terrains.
