Everything you need to know about Horizontal directional drilling: Technical terms and glossary included
Share

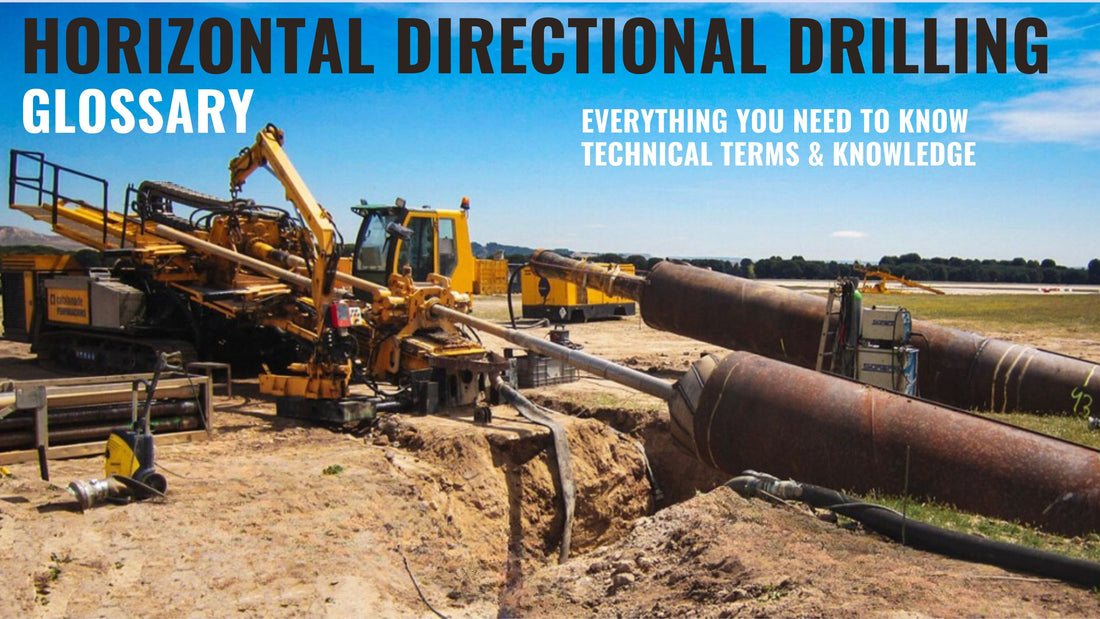

Horizontal Directional Drilling (HDD) is a trenchless construction method used to install pipelines, cables, and conduits with minimal surface disruption. The process begins with site planning and utility mapping, followed by drilling a pilot bore along a carefully designed path. Using advanced locating systems, the drill head is guided underground to avoid existing utilities and obstacles. Once the pilot bore is complete, a backreamer enlarges the hole to the required diameter, and finally, the product pipe or conduit is pulled back through the borehole.
Lifcon has established itself as the leading HDD contractor in Saudi Arabia, utilizing specialized equipment and expert crews to handle projects in all soil conditions — from loose sands to solid rock. Whether installing water pipelines, telecom ducts, or energy infrastructure, our commitment to precision and efficiency ensures every project is completed safely, on time, and with minimal environmental impact.
Below, we’ve compiled a complete HDD glossary covering tools, soil conditions, and technical terms to help clients, engineers, and industry professionals speak the same language and better understand our expertise.
HDD Tools & Equipment Terms
| Term & Alternate Terms | Definition |
|---|---|
| Adapter (Sub, Crossover, Tailpiece) | Configurable adapter piece that allows drillers to use various manufacturer’s drill bits and blades with others’ starter rods, housings, and other configurations. Often customizable to fit specific needs of a jobsite tooling setup. |
| Air Hammer | Tool used in HDD designed to bore through difficult rock formations using a combination of thrust, pressure and rotation to chip and carve rock from a hole. |
| Backreamer (Reamer, Hole Opener, Expander) | Cutting head attached to the leading end of a drill string to enlarge the pilot bore during a pull-back operation to enable the product pipe to be installed. |
| Barrel (Stabilizer, Pig, Centralizer) | Large cylindrical add-on tool that centers reamer and stabilizes the drill rod, reamer, and product pipe to create a round hole and successful bore. |
| Bentonite | Natural clay material with thixotropic properties used as a basic ingredient for drilling muds and lubricants. |
| Bit (Blade, Duck Bill, Drill Bit, Paddle, Steer Plate) | Tools that excavate soil or rock and facilitate steering at the face of the bore. Includes slant-face bits, slanted-face rock bits, rotary rock bits, and percussive bits. |
| Breakout Wrench | Manual or hydraulic tool used to connect or break tool joints at access points forward of the drill rig. |
| Burp Hole | Hole dug along the bore path to relieve downhole pressure and prevent inadvertent returns or hydro locking. |
| Cuttings (Spoil, Slurry) | Earth, rock, and other materials removed during drilling. |
| Detergent (Soap) | Drilling fluid additive that reduces clay balling and keeps tooling clean. |
| Drill Fluid (Mud Mix, Slurry) | Mixture of water, bentonite, and other additives to address soil and water conditions that could hinder HDD success. |
| Drill Head (Housing, Transmitter Housing, Head, Sonde Housing) | Lead portion of the drilling process that houses the transmitter for locating the drill bit underground; connects to blades and bits based on ground conditions. |
| Drill Rig (Rig, Drill) | Trenchless machine used to install pipes and cables by drilling a pilot bore before enlarging and pulling back the product. |
| Drill Rod (Pipe) | High-strength hollow steel pipes used to transmit torque and thrust, and to transport drilling fluid to downhole tools. |
| Duct Puller (Puller, Carrot, Towing Head, Pull Head) | Device that connects duct, pipe, or utility to a pullback device to ensure secure attachment during installation. |
| Filter Cake | Thin bentonite layer sealing the borehole to prevent fluid loss into surrounding soil. |
| Fly Cutter (Wagon Wheel) | Reamer style with open blade configuration. |
| Hole Opener (Rock Reamer) | Downhole tool with rolling cutters to enlarge holes in hard soil and rock. |
| Lowboy | Semi-trailer with two drops in deck height for hauling large HDD equipment. |
| Mixing System | Pumps, hoppers, mixers, hoses, and tanks for preparing drilling fluid suitable for site geology. |
| Mud Motor | Downhole tool using pressurized fluid to power rotating cutterheads in rock. |
| PDC Bit | Polycrystalline Diamond Compact bit for rocky conditions, offering high penetration rates and durability. |
| PDC Reamer | PDC-equipped reamer for rocky formations, increasing penetration power and lifespan. |
| Pilot Bore (Pilot, Bore, Pilot Phase, Initial Bore) | First steerable pass of drilling before backreaming. |
| Pipe Roller | Bearings under pipe to prevent ground drag before entering the pit. |
| Receiver (Locator, Guider, Magic Box) | Electronic device detecting signals from transmitters to locate the drill head underground. |
| Receiving Pit (Exit Hole, Exit Pit) | Final pit where the bore emerges for product pullback. |
| Recycler (Reclaimer) | Machine separating solids from drilling fluid for reuse. |
| Remote Display (Monitor, Display) | Monitor on the drill rig showing drill head position. |
| Shackle (Anchor Shackle, Clevis) | Connector between pulling grips/pullers and swivel. |
| Starter Rod (EZ Connect, Quick Connect, Transition Rod) | Connector allowing quick directional head or reamer changes. |
| Swivel (Pullback Swivel, Clevis Swivel, Thread-on Swivel) | Prevents product rotation during pullback. |
| Transition Sub (Flex Sub) | Connects drill pipe to housing or reamer. |
| Transmitter (Beacon, Sonde, Probe) | Sends location, pitch, roll, temperature, and battery data to the receiver. |
| Vacuum (Sucker) | Stand-alone unit for removing fluid and slurry from pits. |
| ZapAlert (Strike Alarm) | Alerts crew of possible underground power line strikes. |
Soil Conditions
| Term & Alternate Terms | Definition |
|---|---|
| Bog | Wetland that accumulates peat, often mosses, including sphagnum moss. |
| Caliche | Hardened calcium carbonate cement binding gravel, sand, clay, and silt. |
| Cobbles | Rounded rock formations; usually pushed aside rather than cut. |
| Decomposed Granite | Weathered granite that breaks easily into smaller rock pieces. |
| Gravel | Loose rock fragments; drilling can be challenging without correct tooling. |
| Hard Pan | Firm layer of detrital matter, such as clay, under soft soil. |
| Limestone | Hard sedimentary rock of calcium carbonate or dolomite. |
| River Rock | Water-smoothed rocks with no sharp edges, variable in size and color. |
| Running Sand | Unstable sand below water table or near leaks, prone to liquefaction. |
| Sandstone | Sedimentary rock of sand or quartz grains cemented together. |
| Shale | Soft, layered sedimentary rock from clay or mud that splits easily. |
HDD Technical Terms
| Term | Definition |
|---|---|
| Bearing Life | Expected lifespan of bearings before they require replacement. |
| Bend Radius | The smallest radius a drill rod or product pipe can bend without damage. |
| Frac-out | Inadvertent release of drilling fluid into surrounding ground, often managed by containment measures. |
| Gel Strength | Measure of a drilling fluid’s ability to suspend cuttings when circulation stops. |
| Hydrolock | Condition where fluid pressure prevents pullback or forward movement of tooling. |
| Make-up | Act of tightening threaded connections between rods or tooling. |
| On-grade | Drilling along a predetermined slope or elevation profile. |
| Pullback Force | The pulling load applied to bring the product pipe through the bore path. |
| Torque | Rotational force applied to the drill string. |
| Viscosity | Measurement of a fluid’s resistance to flow, affecting its carrying capacity for cuttings. |
| Slope | The incline or decline of the drill path, expressed as a percentage or degree. |
