Guide to HORIZONTAL DIRECTIONAL DRILLING ( HDD ) Tooling and Equipment: Lifcon’s Expertise in Precision Drilling
At Lifcon, we believe that the strength of any Horizontal Directional Drilling (HDD) project lies not only in advanced engineering but also in the specialized tools and equipment that bring projects to life. With years of experience delivering HDD solutions across challenging terrains, our team combines technical know-how with the right equipment to ensure safe, efficient, and successful project delivery.
This article provides an in-depth look at the essential HDD tools and equipment that make modern trenchless construction possible.

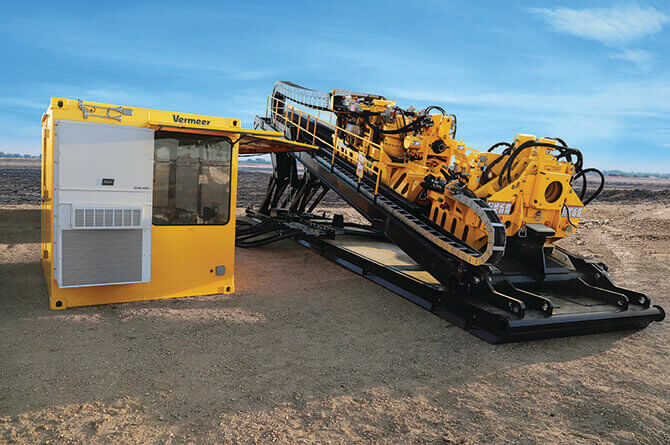

HDD Drill Rigs
Drill rigs are the backbone of HDD operations. Depending on the project size, rigs can range from:
- Small, track-mounted rigs: 5,000–100,000 lbs pullback force
- Mid-sized rigs: 100,000–400,000 lbs pullback force
- Large semi-trailer rigs: up to 1.5 million lbs pullback force
The right rig is selected based on pipeline length, subsurface conditions, drilling fluid properties, and required installation force.
Drill Pipe
Drill pipe connects surface equipment to downhole tooling, transmitting torque and drilling fluid. Common lengths include 10, 15, 20, and 31 feet. These pipes face significant wear, especially at the threaded joints. Lifcon ensures strict inspection in line with international standards so that only safe, reliable joints are deployed on-site.
Drill Bits
The choice of drill bit depends on soil and rock conditions:
- Tri-cone bits: Effective for large installations in both soils and rock.
- Duckbill bits: Preferred for smaller diameters and precise steering in mixed soil conditions.
Both types rely on fluid jetting systems to cool, lubricate, and advance the bit.
Pilot Hole Tools
The pilot hole is the first step in HDD. Lifcon employs two primary assemblies:
- Jetting Assemblies (for soil): Use drilling fluid jets and bent subs for controlled steering.
- Mud Motors (for rock): Powered by drilling fluid, these motors rotate the bit while allowing accurate directional drilling.
Reaming Tools
After the pilot hole, the path is enlarged to fit the pipeline:
- Flycutters: Ring or beavertail style, used in soils
- Hole Openers: Designed for rock, with rotating cones built for high stresses
- Barrel Reamers: Used for swabbing and cleaning before pullback
Pullback Assemblies
Once the borehole is ready, the pipeline is pulled back into position using:
- Pullheads: Welded to the product pipe for secure pulling
- Swivels: Handle torque and reduce stress on the pipe
- Rollers and Cradles: Support the pipe and reduce drag
Specialty Tools
For challenging conditions, Lifcon deploys specialized solutions:
- Pneumatic hammers: Assist stuck pipe removal
- Buoyancy control systems: Reduce pull forces for large-diameter pipelines
Drilling Fluid Management
Efficient fluid recycling and disposal are vital for both performance and environmental protection. Lifcon uses multi-stage cleaning systems (scalper shaker, desander, desilter) to extend drilling fluid life and minimize waste.
Survey and Steering Systems
Accuracy is critical in HDD. Modern steering probes, secondary survey systems (wireline or solenoid methods), and gyroscopic tools ensure that the bore stays true to design, even in areas with magnetic interference.
The success of HDD projects depends on more than just advanced machinery—it requires expert knowledge, precise tooling, and a commitment to safety and quality. At Lifcon, we combine these elements to deliver reliable trenchless solutions for clients across Saudi Arabia and beyond.
Whether it’s drill rigs, bits, reamers, or fluid management systems, our integrated approach ensures that every project is completed efficiently, safely, and to the highest engineering standards.
